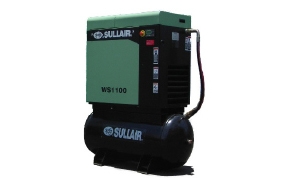

WS Series (5-25HP)
Sullair’s 5 – 25 hp stationary compressors feature the S-energy® series of Performance Air System packages for smaller shops and factories. The ES-6 Encapsulated and ShopTek™ Lubricated air compressors can be used alone or can be configured with a Performance Air System sized and matched to provide maximum performance and value. The S-energy® series of encapsulated air compressors include both constant speed and variable speed drives with quiet running and the smallest footprint in their class.

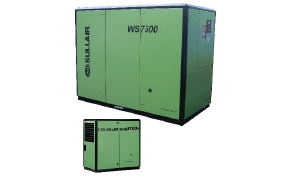

WS series 30-100
Sullair Series WS compressors have established themselves as outstanding in the 30 to 100 horsepower range. These compressors offer the inherent reliability of Sullair’s rotary screw design and also pro-vide continuous duty performance. Components of every Sullair compressor have been carefully selected to assure complete reliability.
• Versatile Control System offers system flexibility: start stop, load-unload, modulation, auto dual.
• Energy-Efficient:11.3% saving over conventional design.
• Reliable : Full five (5) year warranty on air-end, full one (1) year on packaged unit.
• Quiet : 67 dBa only, suited for indoor installation at point-of-use.
• Smallest Footprint in Its Class : more compact than any similar compressors.
• Low pressure drop air-fluid separation system with less than 1 ppm fluid carryover.

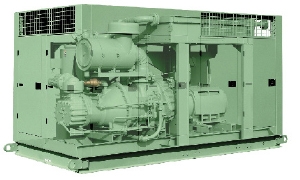

TS Two - Stage Tandem Compressors
Sullair’s TS two-stage tandem compressors use two sets of rotors arranged in a unique end-to-end design that achieve higher efficiencies than other two-stage rotor arrangements. This design is based on Sullair’s proven technology,with the tandem’s spiral valve capacity control,further operating efficiencies can be achieved during part-load operation. Series TS-20 and TS-32 compressors are available from 100 to 600 hp with capacities of 515 to 3100 acfm, and pressure ratings of 100 to 175 psi. Compression is divided between the two stages, reduced pressure difference across each stage facilitates reduction in leakage losses.
• 30 % Energy Saving with Variable Output Airend at Partial Load.
• Providing a two-year payback in energy savings.
• Extended bearing life.
• 5 (Five) Years Warranty on standard models.
• 10 (Ten) Years Warranty on 24KT™models

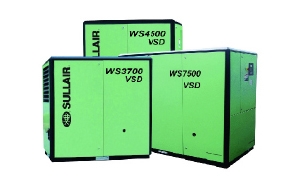

VSD Series
The Sullair VSD series Variable Speed Drive compressors 25 to 350 HP, with Sullair Smart Technology provide:
• Excellent energy savings
• Relief from potential peak demand charges
• Possible utility company rebate
• Alleviation from electrical harmonics
• Built-in Harmonic Filtration
• Stable system pressure
• Consistent product quality
• Reduced system air leaks
• Reduced storage requirements
• Flexibility for future growth
• Lowest 5-year Life cycle cost
• Warranty covers your compressor’s major components for 5 years - plus its variablespeed drive.

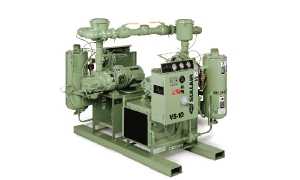

VS Vacuum Pumps
Sullair’s state-of-the-art VS vacuum pumps deliver the ultimate in smooth, pulse-free operation and dependable, cost-effective performance in the 5 to 200 horsepower range. They are compact and quiet. Series VS vacuum pumps are built of the highest quality components, to assure the utmost reliability and minimum maintenance expense. Because they are air cooled and require no seal water, there are no water acquisition, treatment or disposal costs. As a result, these systems offer lower power costs and up to 50% lower saving operating costs than other types.

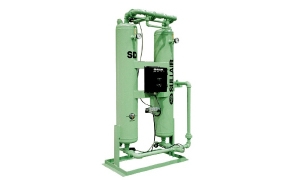

Dryers & Filters
Sullair recognizes that the requirements for air quality vary according to each compressed air application, a Sullair dryer and Sullair filters. Dry air is filtered to remove atmospheric particulate, aerosols and other pollutants to provide compressed air for general purposes to the most critical application. The air from this Sullair System exceeds the ISO standard (ISO 8573.1, Class 1) for air quality.
• The SR refrigerant dryers.
• Sullair DHL Heatless Regenerative Dryer, PDP to -40°C pressure dew point. Sullair DBP Blower Purge Desiccant
• Sullair High-efficiency Pre-filter FXF / Afterfilter FXH, remove particulate,and water and lubricant aerosols to a level of 0.01 ppm@70°.
